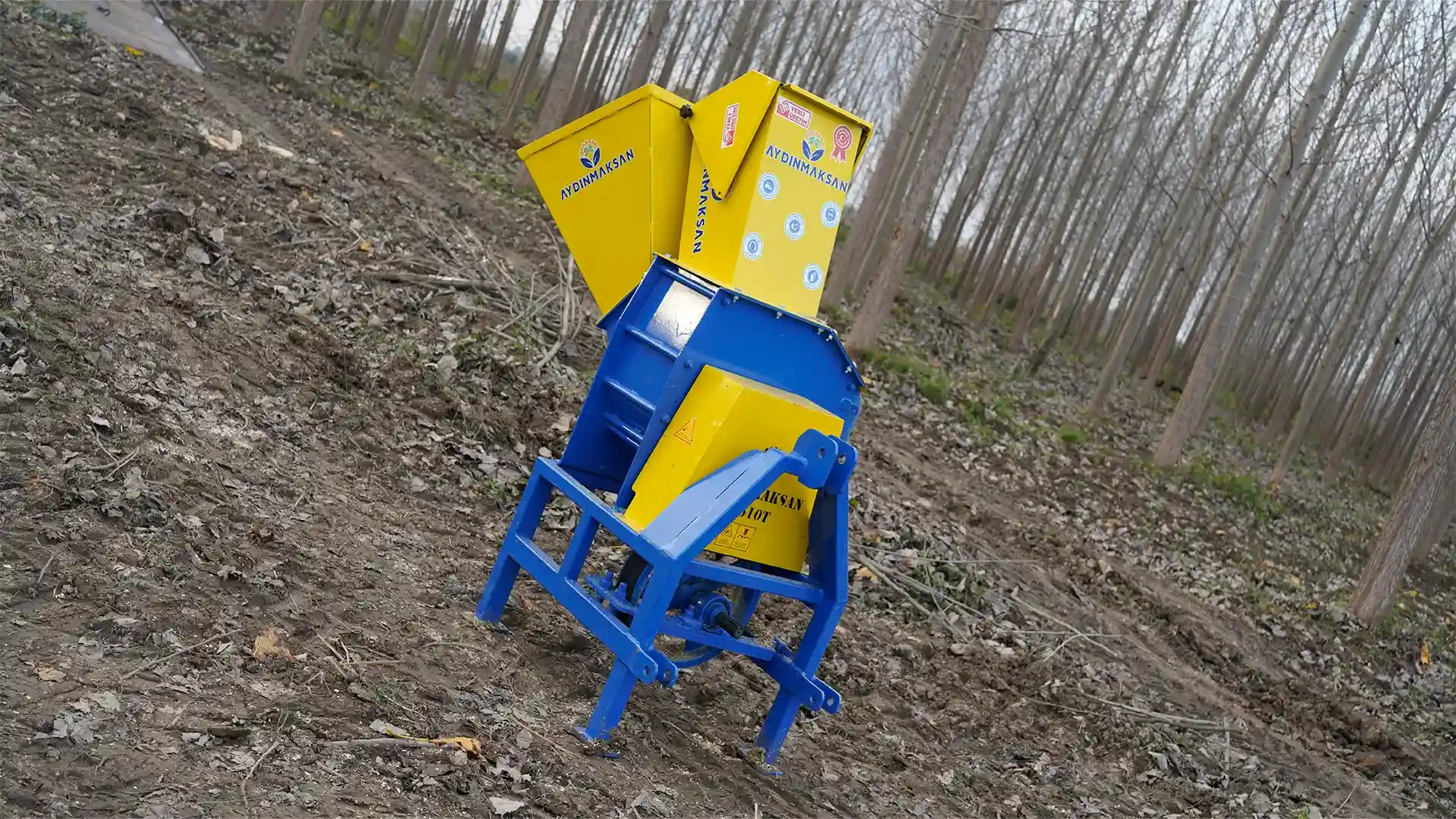

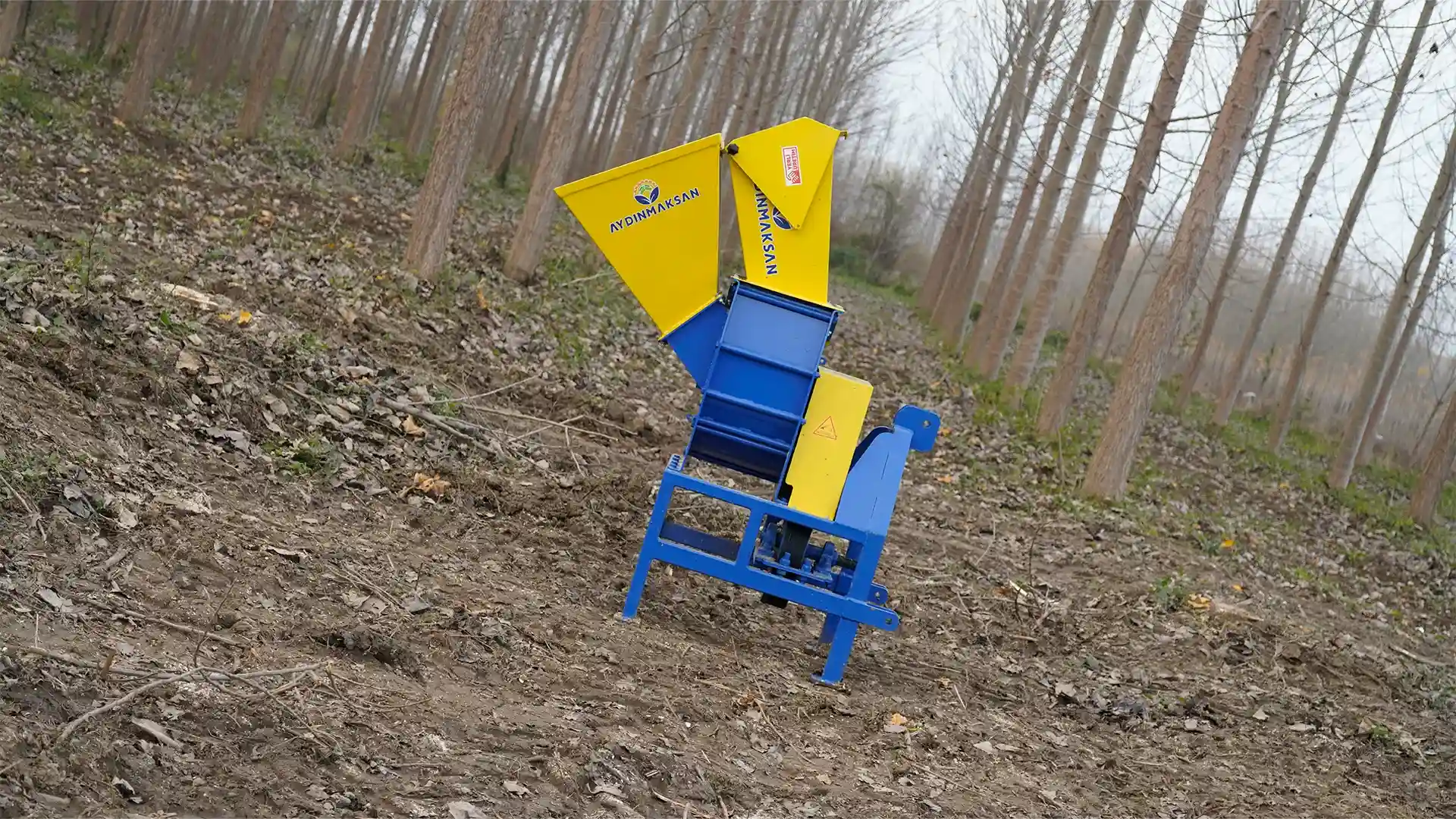

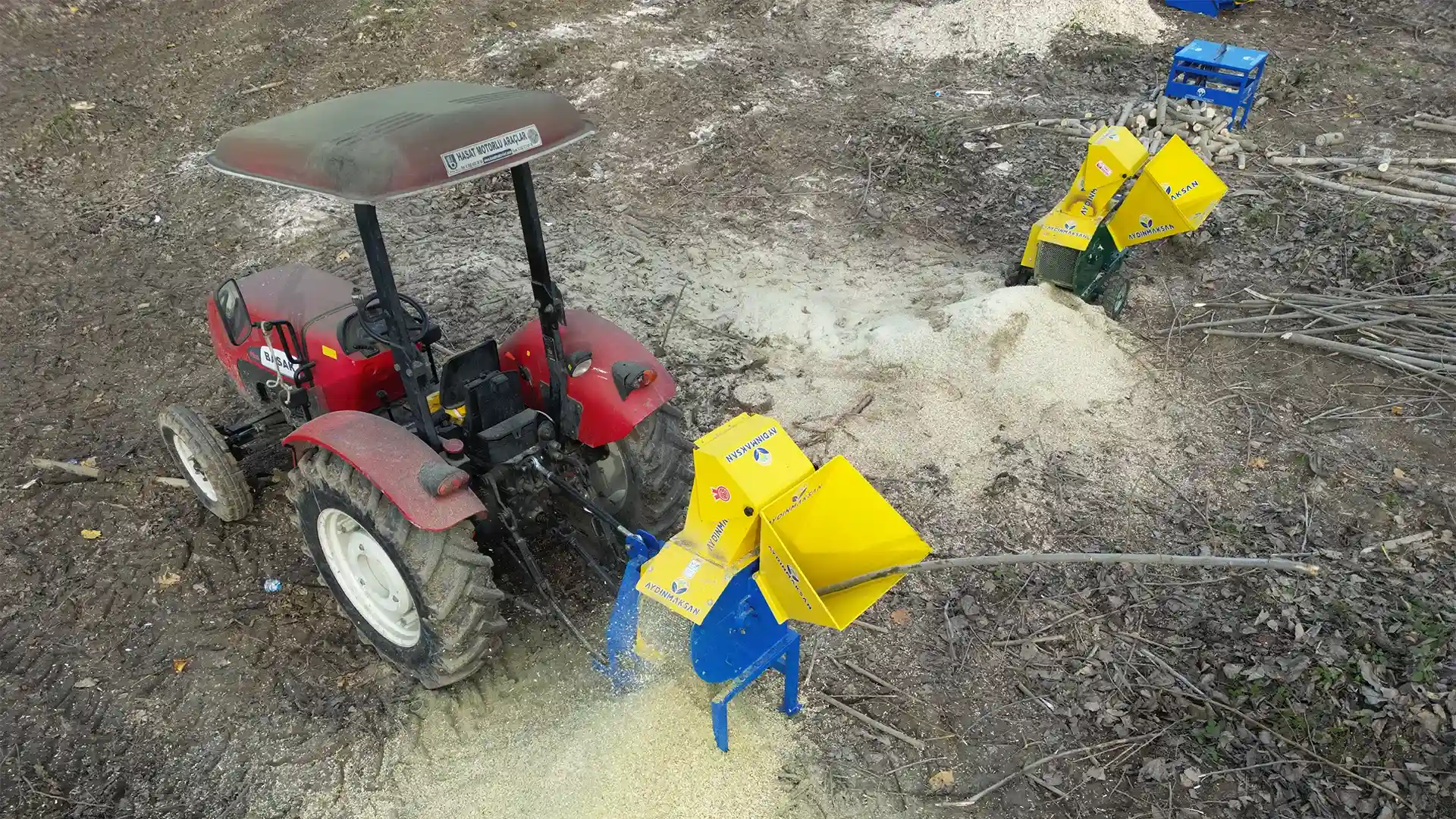

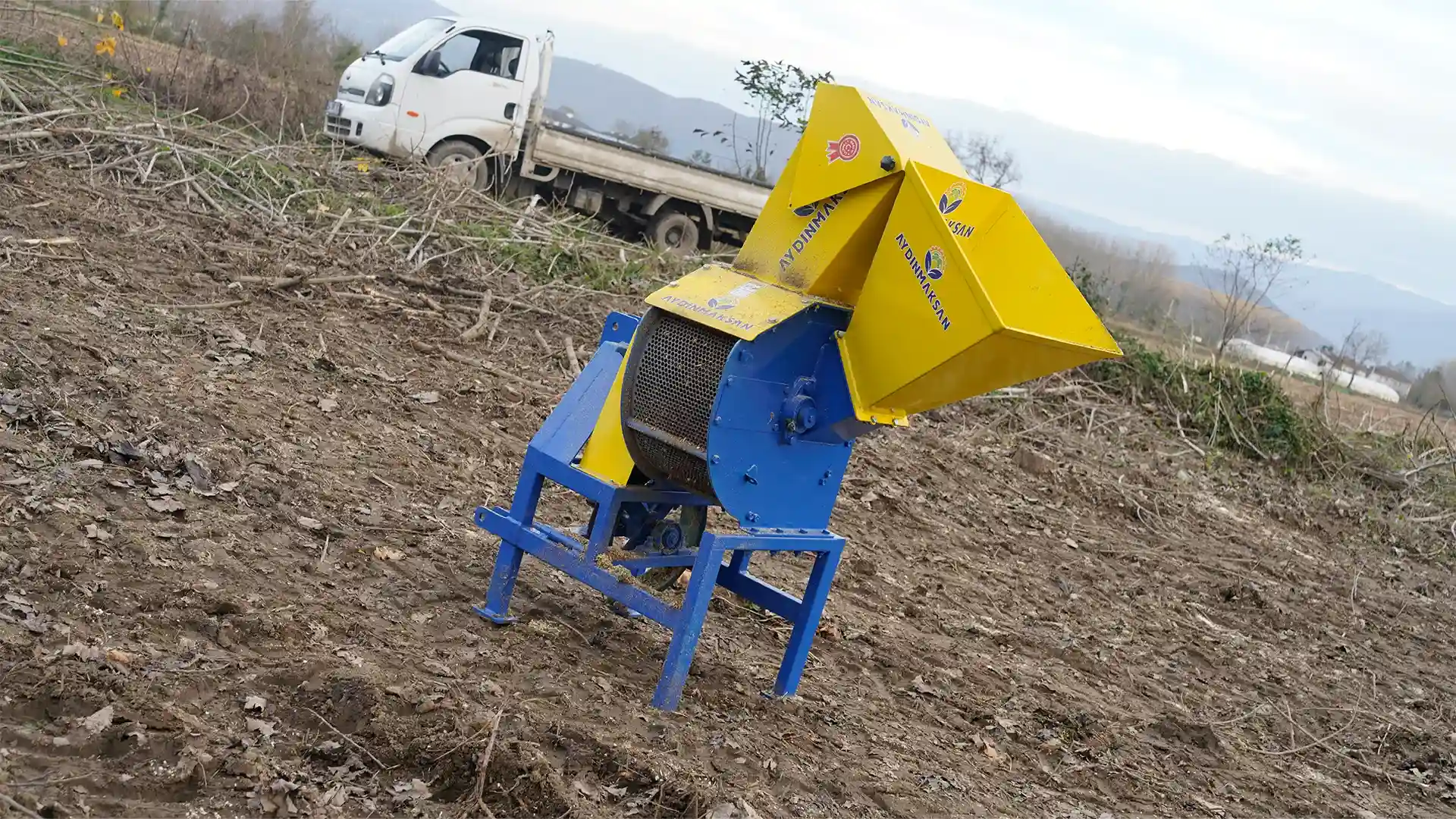

Tractor Mounted Wood Chipping Machine
TTM-510
Depending on the humidity and tree species, it has the capacity to grind branches up to 8 cm in diameter into chips with its 4 cutting blades. At the same time, with 32 crusher blades on it, it allows you to crush the chips into powder sawdust thanks to the sieve on it. The finished chips can be used as solid fuel, pellet fuel or for manufacturing, heating and laying on the ground in poultry farming or for heating in pyrolysis boilers, fireplaces, stoves and other heating devices.





TTM-510
Engine Features
Min. 35 Hp Tractor Driven
Capacity
8 cm
Number of Blades
4 Cutting Blades / 32 Shredding Blades
Feeding System
Self-Feeding with Free Fall
Bunker Entrance
(H)52/ (L)62 cm
Sieve Diameter
12 mm
Transport
Tractor with 3 Hanger Arm
Option
Suction Contrictor at product outlet
Hourly capacity
Max. 500 kg/Hour
Width x Length x Height
95 X 160 X 150 cm
Weight
250 Kg
Warranty
2 Years
TTM-510 Tractor Driven Professional Wood Chipper is a high performance product equipped with blades made of special Swedish steel and Hardox steel parts.
The machine, which can operate with 35 HP and above tractors, easily grinds branches up to 8 cm in diameter and offers the resulting sawdust for use in many areas such as solid fuel, pellet production and animal husbandry.
TTM-510, which is completely domestic production, is supported by a 24-month warranty and after-sales service.
Quality control is carried out at every stage of the production process, ensuring long life and durability of the product.
The blades are processed with high frequency induction heating and all surfaces are ground. The machine is protected against rust with its powder coating and is resistant to harsh working conditions.
Contributing to your energy independence, TTM-510 significantly supports the utilization of waste.
By converting sawdust, a natural fuel source, into energy, it both protects the environment and offers economic advantages.
The TTM-510 is a tool for both professional use and home gardens.

-
1. TRACTOR DRIVEN ENGINE
Min. Works with 35 Hp Tractor Power.
-
2. WORKING CAPACITY
8 cm Chipping Capacity.
-
3. NUMBER OF BLADES
3 Cutting Blades / 24 Shredding Blades.
-
4. FEEDING SYSTEM
Easy to use thanks to self-feeding with free fall.
