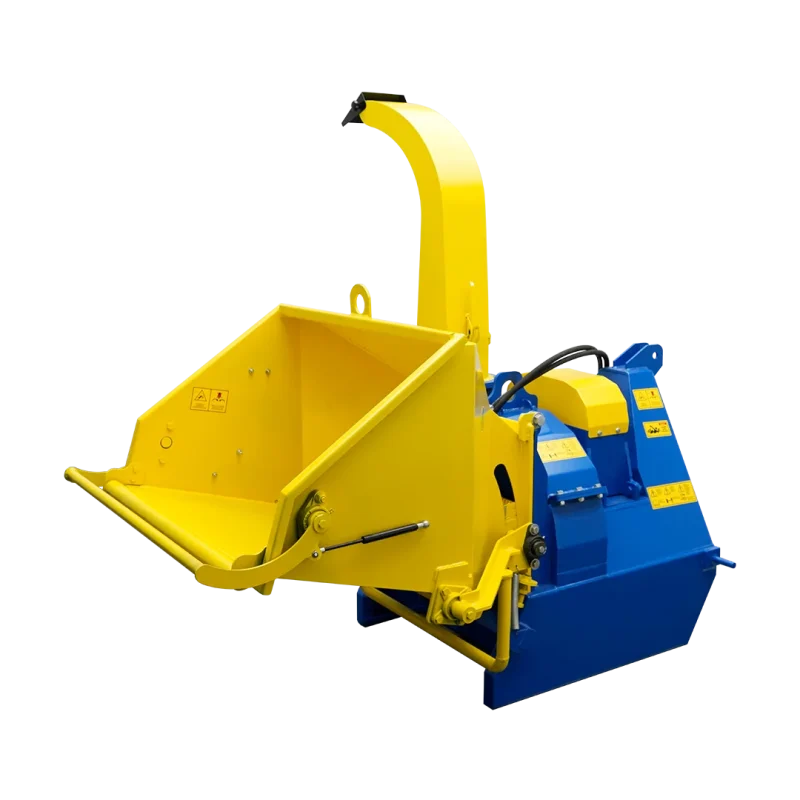

Tractor Mounted Wood Chipping Machine
TDO-510D
Depending on the moisture content and tree species, it has the capacity to grind branches up to 8 cm in diameter. The finished wood chips can be used for heating in solid fuel and pyrolysis boilers, fireplaces, stoves and other heating devices. In addition, wood chips can be used as mulch material or fertiliser for plants.
TDO-510D
Engine Features
Min. 24 HP Tractor Power
Capacity
Max. 8 cm
Number of Blades
3 PCS Sharpenable Blades
Feeding System
Self-feeding with Free Fall
Bunker Entrance
(H)53 / (L)70 cm
Circular Saw Feature
Diamond Tip 400 mm
Sawbench Sizes:
(W)63,5 X (L)73 X (H)85 cm
Transport System
Tractor with 3 Suspension Arms
Discharge System
Side Discharge System
Width x Length x Height
105 X 168 X 121 cm
Weight
260 Kg
Warranty
2 Years
The Aydınmaksan TDO-510D Multi-Functional Wood Chipping for Tractors is a powerful and efficient machine compatible with tractors of 24 HP and above.
Thanks to its replaceable blades made of special Swedish steel and diamond-tipped circular saw, it both shreds branches and cuts logs.
With an average grinding capacity of 1-1.5 tonnes per hour, it provides high efficiency. It can easily grind branches up to 8 cm in diameter and reduce your wood logs to firewood size. The ground branches and wood pieces can be used as solid fuel, burned in fireplaces, or used in composting. This way, waste accumulated in nature is utilised, offering an environmentally conscious solution.
Thanks to its T-connection, it can be easily attached to a tractor and transported.
The blades have been specially heat-treated to increase their durability. The machine has been made durable through grinding and powder coating processes.
Aydınmaksan offers a 2-year warranty for the TDO-510D. In addition, we continue to support our customers with our after-sales services.
The TDO-510D is entirely domestically produced and undergoes quality control before being made available to you.
Transform garden waste into energy-efficient resources with the Aydınmaksan TDO-510D.
-
1. TRACTOR DRIVE ENGINE
Min. Works with 24 Hp Tractor Power.
-
2. WORKING CAPACITY
8 cm Chipping Capacity.
-
3. NUMBER OF BLADES
3 Sharpenable Blades.
-
4. FEEDING SYSTEM
Easy to use thanks to self-feeding with free fall.
-
CIRCLE SAW
30-piece diamond-tipped circular saw.
AYDINTARIM
VIDEO GALLERY
Let us call you
Bayimizle İletişime Geçin
Bayimizle İletişime Geçin
AYDINTARIM
PRODUCT GALLERY
Make Your Work Easier
WHY SHOULD I CHOOSE TDO-510D?
Practical Movement Ability
Our models provide convenience to our users throughout the harvesting process thanks to their easy mobility.
Low Fuel Consumption
With the innovative technologies we currently use and develop, we ensure that our products operate with minimum fuel. With every innovative R&D study we conduct, we aim to keep your fuel costs at a minimum level.
High Efficiency
Our products increase your efficiency by eliminating your labor costs, which are the biggest outputs of agricultural mechanization.
