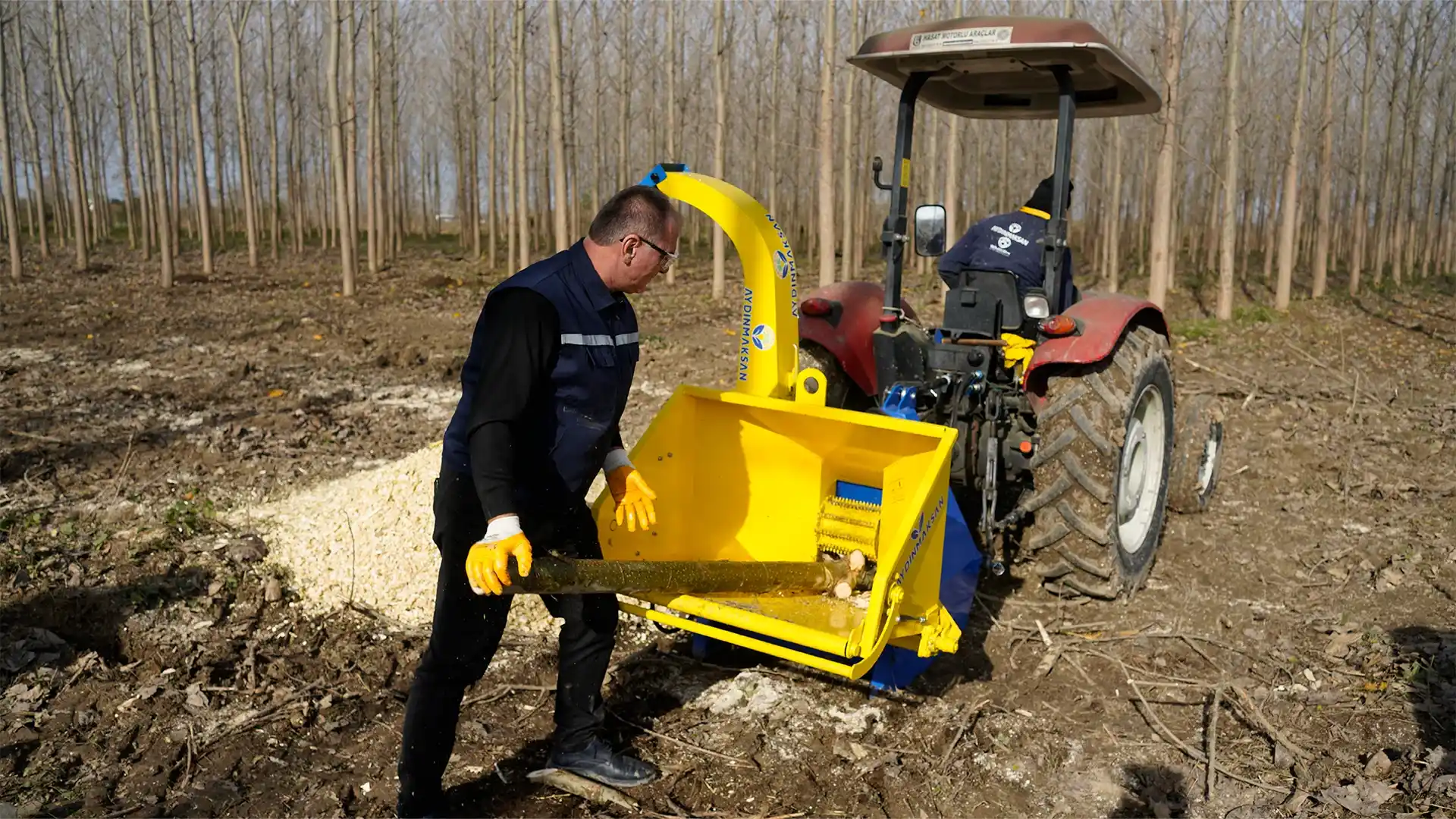

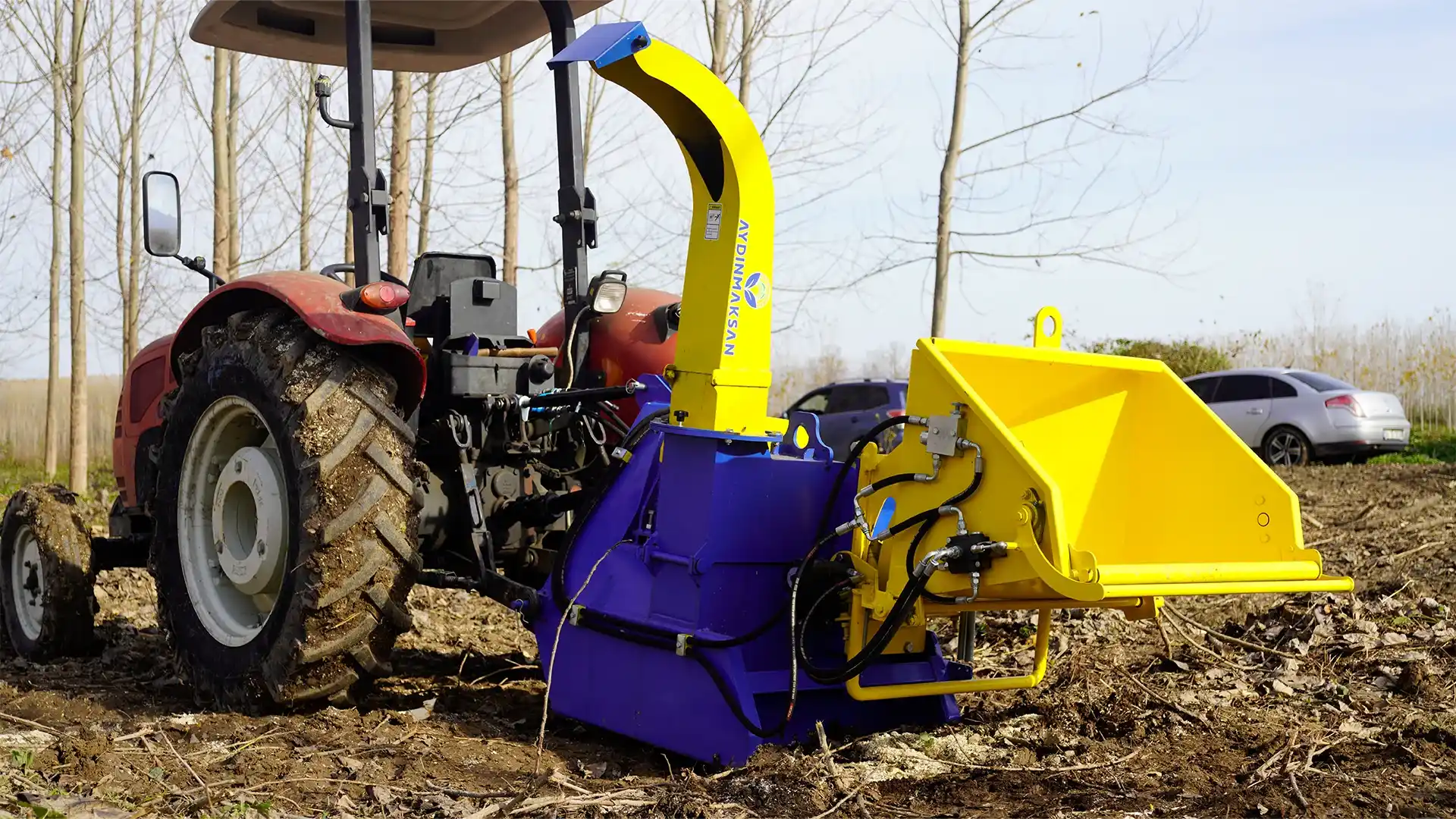

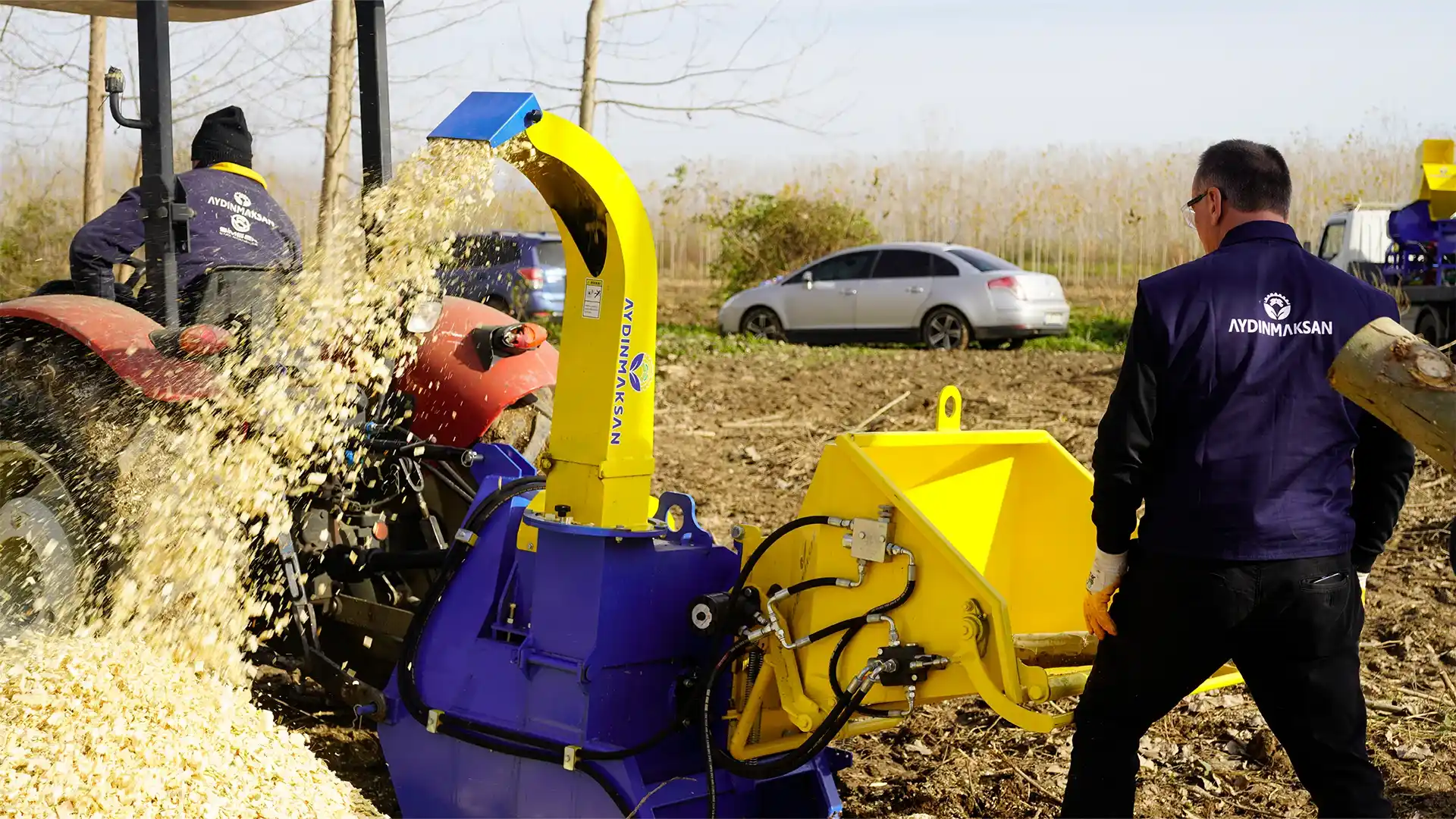

Tractor Mounted Wood Chipping Machine
TDO-700
Depending on moisture content and tree species, it has the capacity to grind branches up to 13 cm in diameter. The finished wood chips can be used for heating in solid fuel and pyrolysis boilers, fireplaces, stoves and other heating devices. In addition, wood chips can be used as mulch material or fertiliser for plants.
TDO-700
Engine Power
Min. 35 Hp Tractor Power
Capacity
Max. 13 cm
Number of Blades
3 PCS Movable / 1 PCS Fixed(Sharpenable)
Feeding System
Hydraulic Speed Controlled Drive System
Bunker Entrance
(H)65 / (L) 90 cm
Discharge System
360° Rotatable Foldable Chimney (H) 190 cm
Transport System
Tractor with 3 suspension arms
Width x Length x Height
122 X 195 X 165 cm
Weight
625 Kg
Warranty
2 Years
The Aydınmaksan TDO-700 High-Capacity Wood Chipping for Tractors is a powerful and efficient machine compatible with tractors rated at 35 HP and above.
Thanks to its replaceable blades made from special Swedish steel, it can easily shred branches up to 13 cm in diameter. The blades have been subjected to a special heat treatment to increase their durability.
The optional TDO-700 NS (No Stress) model, on the other hand, increases the shredding capacity to 17 cm thanks to its hydraulic automation system, without straining your tractor.
It provides high efficiency with an average grinding capacity of 2-2.5 tonnes per hour. The ground branches can be used as solid fuel, burned in fireplaces, or used in compost production. This way, waste accumulated in nature is utilised, offering an environmentally friendly solution.
The machine is made durable through grinding and powder coating processes.
Thanks to the T-connection, it can be easily attached to and transported by a tractor.
The 360-degree rotating and foldable chimney system allows you to easily discharge wood chips in any direction.
The hydraulic feed system allows you to adjust the speed according to the thickness of the branches to be shredded and keep the branch feeding process under complete control.
This increases work safety and optimises machine efficiency.
Aydınmaksan offers a 2-year warranty for the TDO-700. Additionally, we continue to support our customers with our after-sales services.
The TDO-700 is entirely domestically produced and undergoes quality control before being delivered to you.
Transform garden waste into energy-efficient resources with Aydınmaksan TDO-700.
-
1. TRACTOR DRIVEN ENGINE
Works with Min. 35 Hp Tractor Power.
-
2. WORKING CAPACITY
13 cm Chipping Capacity.
-
3. NUMBER OF BLADES
3 Moveable & 1 Fixed Sharpenable Blade.
-
4. FEEDING SYSTEM
Easy Operation Feature Thanks to Hydraulic Speed Controlled Drive System.
AYDINTARIM
VIDEO GALLERY
Let us call you
Bayimizle İletişime Geçin
Bayimizle İletişime Geçin
AYDINTARIM
PRODUCT GALLERY
Make Your Work Easier
WHY SHOULD I CHOOSE TDO-700?
Practical Movement Ability
Our models provide convenience to our users throughout the harvesting process thanks to their easy mobility.
Low Fuel Consumption
With the innovative technologies we currently use and develop, we ensure that our products operate with minimum fuel. With every innovative R&D study we conduct, we aim to keep your fuel costs at a minimum level.
High Efficiency
Our products increase your efficiency by eliminating your labor costs, which are the biggest outputs of agricultural mechanization.
